LiFePO4 —

We try out a 12V lithium-ion battery upgrade for your car.

Bradley Iger

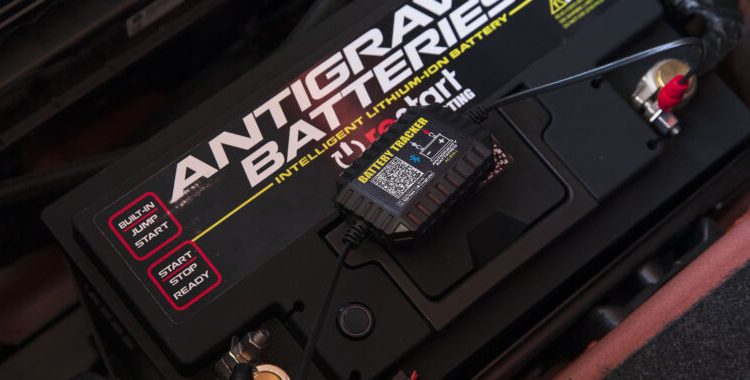

The Antigravity Battery In Place, With The Bluetooth Monitor Dongle.

Enlarge / The Antigravity battery in place, with the Bluetooth monitor dongle.

Bradley Iger

From iPhones to Teslas, lithium-ion battery technology is ubiquitous in today’s world. It’s the chemistry of choice for a wide range of applications due to its high charge density relative to its mass, which in turn yields things like high-end laptops that can run for more than 10 hours on a single charge while weighing less than four pounds.

But what about that lead-acid lump hanging out in your car’s engine bay? The origins of that battery date back to the mid-19th century, and yet even today you’ll still find this archaic tech serving up electrons in the vast majority of vehicles on the road—including EVs.

In recent years, some automakers have started to make lithium-ion starter batteries available in their vehicles, but the batteries have largely been limited to expensive optional offerings in high-end sports cars from companies like Porsche and McLaren. Antigravity wants to change that.

  • This is an Antigravity H7, which is a 12V lithium iron phosphate starter battery.


    Bradley Iger

  • In 2009, Porsche introduced a 12V lithium-ion starter battery as a $1,700 option, but only on its lightweight cars, the 911 GT3, GT3 RS, and Boxster Spyder.


    Porsche

  • On the left, the Antigravity lithium-ion battery. On the right, a conventional lead-acid 12V battery.


    Bradley Iger

  • Conventional lead-acid batteries are heavy—this one weighs 45lbs (20kg).


    Bradley Iger

  • The Antigravity battery is the same size but weighs just 15.8lbs (7.2kg).


    Bradley Iger

  • The battery, installed in a Dodge Hellcat.


    Bradley Iger

  • Once installed, the Antigravity battery worked perfectly.


    Bradley Iger

  • The lithium-ion battery cut a whole 29lbs from the weight of this Dodge Hellcat.


    Bradley Iger

The Los Angeles-based outfit is the brainchild of Scott Schafer, an engineer and performance enthusiast who saw the writing on the wall more than a decade ago. “Back in 2010, I bought one of the very first lithium motorcycle batteries available,” he explains. “I found it through an online forum—it was a guy who was building them to order. I thought it was an amazing product, but it only ended up lasting about three months or so before it failed. Not long after that, I started collaborating with a battery engineer who worked for SBC Global. We discussed the shortcomings of that motorcycle battery, and he explained that if we did this, this, and this, we could create something with far better reliability.”

The two soon set to work creating a lithium motorcycle battery of their own. “Initially, we just made the batteries for ourselves and our friends who were doing track-day events,” Schafer says. “And over time, just being at the track and talking to people about it, we started getting more and more orders for these batteries.”

The team quickly outgrew Schafer’s garage-based operations center and moved to increasingly larger facilities as word of his new product spread throughout enthusiast circles. “That’s when we made a molded plastic case and started making them look like real batteries,” he quips. “And at that point, it really became a legitimate product.”

Fast-forward a decade, and Antigravity is now one of the leading suppliers of lithium iron phosphate batteries not only for powersports applications, but 12V automotive battery replacements as well. “There were other companies that got started around the same time that we did, but they were unable or unwilling to evolve as new technologies became available,” Schafer tells us.

“The real hurdle we needed to overcome was developing an internal management system that makes these batteries safe and durable in these types of applications. We knew the product needed to meet a certain standard, and that’s why we developed our battery management system—it protects the lithium from getting into situations where thermal runaway could be an issue due to overcharging or other problems. And the type of lithium chemistry we’re using is iron phosphate, or LiFePO4. In general, this is considered to be the safest lithium technology available today.”

A real-world test

Antigravity offers automotive batteries that will fit nearly any passenger vehicle on the market today, so we decided to put its latest and greatest to the test with a late-model Dodge Challenger, which uses an H7-size battery. Beyond the charge density benefits and sheer novelty of the concept, Antigravity’s batteries offer several important benefits over a lead-acid battery that matter in real-world use.

“The battery has an emergency jump-start feature built into it,” Schafer points out. “So if you accidentally leave your lights on or the battery fully discharges for some other reason, the battery puts itself to sleep and maintains a reserve capacity that can provide four or five more engine starts so you can get the car running again.” While the feature can be accessed by a button on the battery itself, Antigravity provides a key fob that allows the function to be triggered remotely as well.

The company also offers a remote battery monitor, which attaches to the battery terminal posts and reports back the charge state of the battery to a mobile device via Bluetooth. The app is free to download on the Apple App Store and Google Play, and it can send out push notification alerts if the battery’s charge level drops below a user-defined threshold. The app can also be used to monitor cranking voltage and check for charging-system issues.

  • The main screen for the Battery Tracker app.

  • The software will test to make sure the battery is getting recharged properly.


    Antigravity

  • The Battery Tracker app showing cranking voltage.


    Antigravity

  • Battery Tracker’s settings page.


    Antigravity

“We initially aimed for the performance market, but there are a number of other factors that make lithium better for mainstream applications, too,” Schafer notes. “For instance, it has a much higher cranking amp than a lead-acid battery—probably two to three times more. That translates to easier engine starts and less strain on the starter, whether it’s very cold outside or very hot.”

But the main reason that Schafer originally targeted the performance market is because lithium batteries weigh significantly less than their lead-acid counterparts. After removing the factory battery from our Challenger, we set each one on a bathroom scale. Our factory lead-acid battery weighed in at 45 lbs (20kg) even. The Antigravity battery? Just less than 16 lbs (7kg), or roughly one-third of the weight. Doing an A/B comparison of picking one up after the other, the difference is genuinely stunning.

Sure, losing 30 pounds isn’t exactly transformative in a vehicle that weighs well over two tons, but for autocrossers and folks building race cars, dropping 30lbs without losing any functionality in the vehicle would be like receiving manna from the car gods. You could also argue that, at 4,400 lbs (1,996kg), the Challenger (and most modern production cars, really) could use all the weight savings it can get.

With the new battery installed, Schafer’s promise of easier engine starts was immediately evident—the starter actually sounded different due to the noticeably faster cranking speed. The battery monitoring app also worked like a charm, connecting to the car without any fuss even when we were inside a building and several walls away from the car.

“Keep bringing the price down”

But here’s the kicker: while a good H7 lead-acid battery costs about $250, the Antigravity H7 will set you back $829. That might be a tough pill to swallow for all but the most hardcore of enthusiasts—or folks who have cars that sit for extended periods of time—but the damage to your wallet may not be quite as bad as the lofty price suggests: while you’d be lucky to get more than four years of life out of a traditional lead-acid battery, lithium batteries can last twice as long—if not longer.

And looking down the road, Schafer says that making the technology viable for the average motorist is one of the main focuses for Antigravity. “The hope is to keep bringing the price down while retaining the features that the battery currently has and expand the feature set as we go—integrating Bluetooth monitoring into the battery itself and things like that. But right now, it’s really about making it more accessible to the family with the minivan or person who needs to swap a new battery into their daily commuter.”

Fortunately, the steady march of progress—and its inherent effect on the cost of emerging technologies—should help Antigravity do just that.
